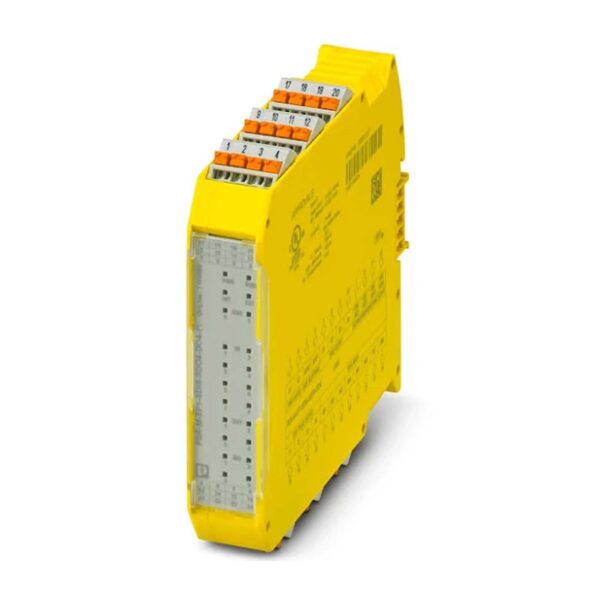

Phoenix Contact PSR-M-EF1-SDI8-SDO4-DO4-PI Extension module

Description

• Safe Inputs/Outputs: 8 safe inputs, 4 safe outputs, 4 reset inputs or signal outputs, and 4 clock outputs.

• Interfaces: TBUS interface for connection to the master module.

• Safety Certifications: Up to SIL 3, Cat. 4/PL e.

• Supply Voltage: 24 V DC (±20%).

• Power Consumption: Typically 1.08 W with outputs inactive, up to 2.1 A with full load.

• Dimensions: 22.5 mm (width) x 116.5 mm (height) x 114.5 mm (depth).

• Operating Temperature: -10°C to 55°C (with derating).

• Mounting: DIN rail
